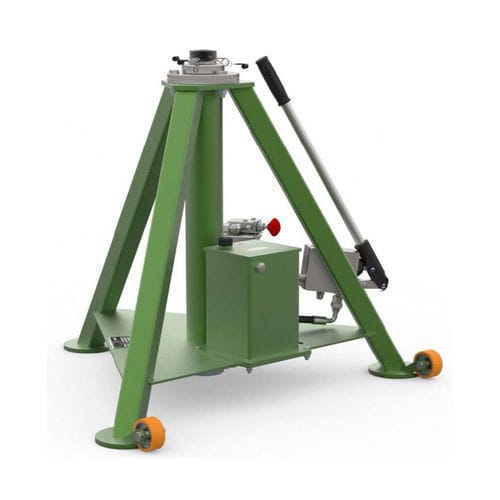

Helicopter jack 4505.02

for aircrafthydraulictripod

Description
The model 4505.02 is a 5 t single-stage hydraulic tripod jack designed for aircraft jacking operations. The modular design separates the hydraulic cylinder and the frame for simplified maintenance and fast spare-part replacement. This independent configuration lowers maintenance cost and supports long-term serviceability for business and light aircraft, including helicopters. Each jack is tested on a jack tester before delivery; all models are lateral-tested at 15% of the vertical load and factory proof-loaded at 150% of nominal capacity.

Applicability
NOSE: Challenger 300, Caravan 406, TBM 850, G150
MAIN: Challenger 650, Caravan 208, Caravan 208B, TBM 850
TAIL:

Standard Features

• Manual hydraulic hand pump.
• Hydraulic relief valve for overload protection and compensation of internal fluid expansion due to temperature.
• Mechanical extension with bolt interlocks at multiple heights.
• Easy disassembly between hydraulic cylinder and frame (independent subset) for maintenance.
• Low-friction seals to reduce leakage and wear.
• Manually operated safety nut for secondary retention.
• Heavy-duty caster wheels for positioning.
• Skydroll resistant paint (grey standard); all unpainted parts galvanized or nitrided for corrosion resistance.
• Palletized packaging.
• Jack socket dimensions according to SAE AS8091.
• CE marking according to EN12312. Factory proof loaded at 150% of nominal capacity.

Optionals

• Special paint colour.
• Wooden closed box.
• Pneumatic-driven hydraulic pump.
• Textile rain hat.

Related Equipment

• Laser Alignment System (P/N: 1851.07).
• Weighing System integrated on jacks (P/N: 1898.00).
• I-jack semi-automatic aircraft jacking system (P/N: 0677.00).

Technical specifications

• Model: 4505.02
• Commercial denomination: Tripod jack
• Capacity: 5 t
• Stages: Single-stage hydraulic
• Standard actuation: Manual hydraulic hand pump
• Construction: Modular design with independent cylinder and frame for easy maintenance
• Testing: Lateral tested at 15% of vertical load; Factory proof loaded at 150% of nominal capacity
• Standards: Jack socket dimensions according to SAE AS8091; CE marking according to EN12312
• Protection: Skydroll resistant paint (grey standard); unpainted parts galvanized or nitrided
• Mobility: Heavy-duty caster wheels
