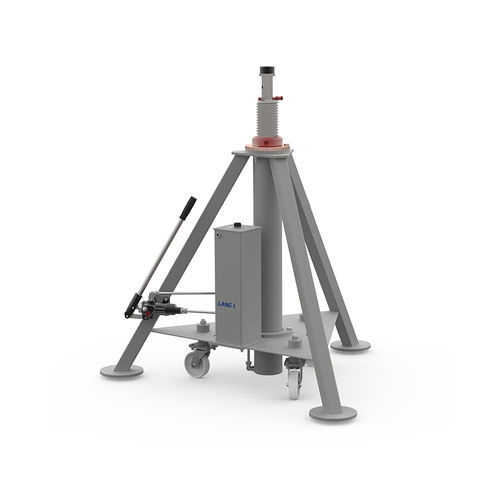

Helicopter jack 4512.02

for aircrafthydraulicpneumatic

Description
The model 4512.02 is a 12 t single-stage hydraulic tripod jack from the S line, designed for aircraft jacking operations. Its compact, modular design separates the hydraulic cylinder from the frame to simplify maintenance and spare parts replacement. The jack is intended for business and light aircraft as well as helicopters and delivers long service life when maintained according to instructions. All units undergo factory proof loading and lateral testing before shipment.

Applicability
NOSE | MAIN | TAIL
G350, G450, G600, G500, GLOBAL 5500, GLOBAL 6500, Gulfstream II, Gulfstream III, Gulfstream IV, Gulfstream IV SP, Gulfstream V, Gulfstream V SP, GLOBAL 5000, GLOBAL 6000, GLOBAL EXPRESS XRS, Fokker 100 | SAAB 2000, Gulfstream I, Legacy 650, SAAB 340, ERJ135, Legacy 600

Standard Features

• Manual hydraulic hand pump.
• Hydraulic relief valve for overload and protection against internal fluid expansion due to temperature.
• Mechanical extension with bolt interlocks at multiple heights.
• Easy disassembly between hydraulic cylinder and frame (independent subset) for fast maintenance.
• Low-friction seals.
• Manually operated safety nut.
• Spring-loaded heavy-duty swivel caster wheels for mobility.
• Skydroll resistant paint (grey standard); unpainted parts galvanized or nitrided for corrosion resistance.
• Packaging over pallet.
• Jack sockets dimensions according to SAE standard AS8091.
• CE marking according to EN12312. Factory proof loaded at 150% of nominal capacity; lateral tested at 15% of the vertical load.

Optionals

• Special paint color.
• Wooden closed box.
• Pneumatic-driven hydraulic pump.
• Textile rain hat.

Related Equipment

• Laser Alignment System (P/N: 1851.07).
• Weighing System integrated on jacks (P/N: 1898.00).
• I-jack – semi-automatic system for aircraft jacking (P/N: 0677.00).

Technical specifications

• Model: 4512.02
• Denomination / Series: S line
• Rated capacity: 12 t
• Type: Single-stage hydraulic tripod jack
• Pump: Manual hydraulic hand pump (standard); pneumatic-driven hydraulic pump (optional)
• Design: Compact, modular design with independent cylinder and frame for easy maintenance
• Safety: Hydraulic relief valve for overload; manually operated safety nut
• Extension: Mechanical extension with bolt interlocks at different heights
• Seals: Low-friction seals
• Mobility: Spring-loaded heavy-duty swivel caster wheels
• Finish: Skydroll resistant paint (grey standard); unpainted parts galvanized or nitrided
• Standards: Jack sockets per SAE AS8091; CE marking according to EN12312
• Tests: Factory proof loaded at 150% of nominal capacity; lateral tested at 15% of the vertical load
• Packaging: Over pallet
