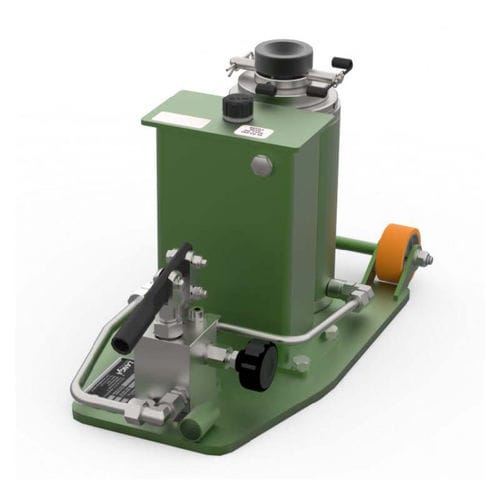

Helicopter jack 4505.91

for aircrafthydraulicpneumatic

Description
The model 4505.91 is a 5 t, two-stage hydraulic tripod jack. Langa S line tripod jacks feature a compact, simple design that preserves all essential operational functions while enabling easy maintenance. The modular construction separates cylinder and frame, reducing maintenance costs and downtime, and facilitating rapid spare-part replacement. The jack is designed for long-term service on business and light aircraft and helicopters. Every unit is quality-checked on a jack tester before delivery. All models are laterally tested at 15% of the vertical load.

Applicability
NOSE: Eurocopter BK117 (EC145), Eurocopter MBB Bo105, Eurocopter UH-72A Lakota, Bell 206B3, Bell 206L4, Bell 214ST, Bell 222, Bell 230, Bell 407, Bell 214, Sikorsky S-76, Bell 430, H145 (EC145), Eurocopter AS355 (EC130), H125 (AS350), Bell 204, Bell 205, Bell 212, Bell 412, H135 (EC135)
MAIN: Bell 214ST, Bell 214, Sikorsky S-76
TAIL: Eurocopter AS 365 Dauphin (EC155), Eurocopter BK117 (EC145), Eurocopter MBB Bo105, Eurocopter UH-72A Lakota, Bell 427, H145 (EC145), Bell 204, Bell 205, Bell 212, Bell 412, H135 (EC135)

Standard Features

• Manual hydraulic hand pump.
• Hydraulic relief valve for overload and thermal fluid expansion protection.
• Mechanical extension with bolt interlocks at multiple heights.
• Easy disassembly between hydraulic cylinder and frame (independent subset) for maintenance.
• Low-friction seals.
• Manually operated safety nuts.
• Heavy-duty caster wheels.
• Skydroll resistant paint (grey standard); unpainted parts galvanized or nitrided for corrosion resistance.
• Packaging over pallet.
• Jack socket dimensions according to SAE AS8091.
• CE marking per EN12312; factory proof-loaded at 150% of nominal capacity.

Optionals

• Special paint color.
• Wooden closed box.
• Pneumatic-driven hydraulic pump.
• Textile rain cover.

Related Equipment

• Laser Alignment System (P/N: 1851.07).
• Weighing System integrated on jacks (P/N: 1898.00).
• I-jack: semi-automatic aircraft jacking system (P/N: 0677.00).

Technical specifications

• Model reference: 4505.91.
• Commercial denomination: S line Tripod Jack.
• Nominal capacity: 5 t.
• Two-stage hydraulic tripod jack.
• Manual hydraulic hand pump (standard); pneumatic pump optional.
• Independent cylinder and frame design for easy maintenance and reduced downtime.
• Hydraulic relief valve for overload protection and thermal fluid expansion.
• Mechanical extension with bolt interlocks; manually operated safety nuts.
• Low-friction seals; heavy-duty caster wheels.
• Coating: Skydroll resistant paint (grey standard); unpainted parts galvanized or nitrided.
• Pallet packaging.
• Jack socket dimensions per SAE AS8091.
• CE marking per EN12312; factory proof-loaded at 150% of nominal capacity; laterally tested at 15% of vertical load.
