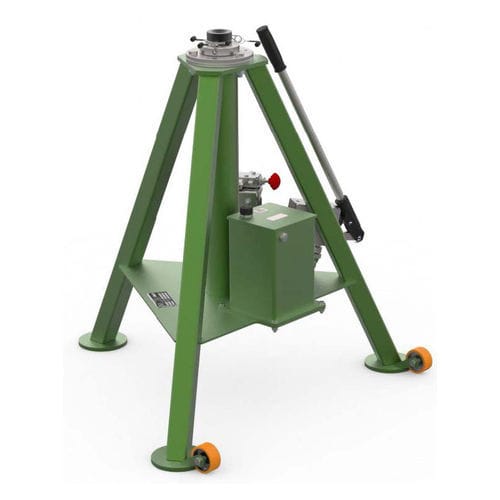

Helicopter jack 4505.03

for aircrafthydraulicpneumatic

Product description
The model 4505.03 is a 5 t single-stage hydraulic tripod jack designed for aircraft jacking operations. The S line tripod jack features a compact, modular design with an independent hydraulic cylinder and frame for simplified maintenance and long service life in business and light aircraft and helicopter operations. Each unit is lateral tested at 15% of the vertical load and factory proof loaded at 150% of nominal capacity prior to delivery.

Applicability
NOSE | MAIN | TAIL
G100 (Astra SPX), King Air, Cheyenne II, Cheyenne III | G100 (Astra SPX), King Air, Cheyenne II, Cheyenne III |

Standard Features
Manual hydraulic hand pump.

• Hydraulic relief valve for overload and additional protection against internal fluid expansion due to temperature.
• Mechanical extension with bolt interlocks at different heights.
• Easy disassembly between hydraulic cylinder and frame (independent subset) for rapid maintenance.
• Low-friction seals.
• Manually operated safety nut.
• Heavy-duty caster wheels for manoeuvrability.
• Skydroll-resistant paint (grey standard); unpainted parts galvanized or nitrided for corrosion resistance.
• Packaging on pallet.
• Jack socket dimensions according to SAE standard AS8091.
• CE marking according to EN12312; factory proof loaded at 150% of nominal capacity.

Optionals
Special paint colour.

• Wooden closed box.
• Pneumatic-driven hydraulic pump.
• Textile rain cover.

Related Equipment
Laser Alignment System (P/N: 1851.07).

• Weighing system integrated on jacks (P/N: 1898.00).
• I-jack — semi-automatic aircraft jacking system (P/N: 0677.00).

Technical specifications

• Model reference: 4505.03
• Type: Single-stage hydraulic tripod jack
• Nominal capacity: 5 t
• Standard pump: Manual hydraulic hand pump
• Optional pump: Pneumatic-driven hydraulic pump
• Mechanical extension: Bolt interlocks at multiple heights
• Design: Independent hydraulic cylinder and frame for easy maintenance
• Lateral test: 15% of vertical load
• Factory proof load: 150% of nominal capacity
• Jack socket dimensions: SAE standard AS8091
• Seals: Low-friction seals
• Safety: Manually operated safety nut
• Mobility: Heavy-duty caster wheels
• Surface treatment: Skydroll-resistant paint (grey standard); unpainted parts galvanized or nitrided
• Packaging: On pallet
