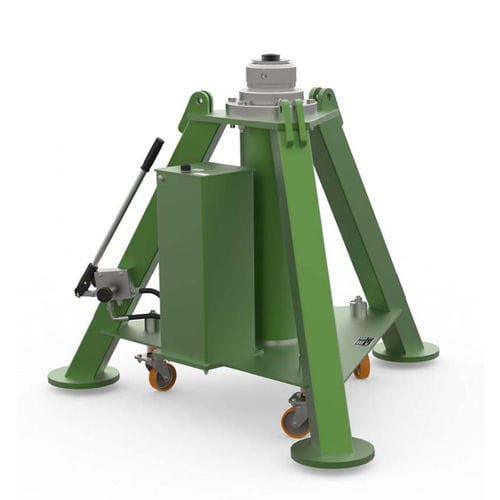

Helicopter jack 4530.51

for aircrafthydraulicpneumatic

Description
The model 4530.51 is a 30 t single-stage hydraulic tripod jack from the Langa S line. Its compact, modular design separates the cylinder and the frame to allow quick servicing and reduced maintenance costs. The jack is designed for ground support of business and light aircraft and helicopters and is supplied after strict factory tests, including lateral testing at 15% of the vertical load and a proof load at 150% of nominal capacity.

Applicability
NOSE | MAIN | TAIL
| G600, G500 |

Standard Features
Manual hydraulic hand pump

• Hydraulic relief valve for overload and protection against thermal expansion of the fluid
• Screw mechanical extension
• Easy disassembly between hydraulic cylinder and frame (independent modular subsets)
• Low-friction seals
• Manually operated safety nuts
• Spring-loaded heavy-duty swivel caster wheels
• Skydroll-resistant paint (grey standard); unpainted parts galvanized or nitrided for corrosion resistance
• Packaging over pallet
• Jack socket dimensions according to SAE standard AS8091
• CE marking according to EN12312; factory proof load at 150% of nominal capacity

Optionals
Special paint color

• Wooden closed box
• Pneumatic-driven hydraulic pump
• Textile rain cover

Related Equipment
Laser Alignment System (P/N: 1851.07)

• Integrated weighing system on jacks (P/N: 1898.00)
• I-jack: semi-automatic jacking system for aircraft (P/N: 0677.00)

Technical specifications

• Model: 4530.51
• Series: Langa S line
• Capacity: 30 t (30 tonnes)
• Type: Single-stage hydraulic tripod jack
• Independent modular design: cylinder and frame disassemblable independently for simplified maintenance
• Standard manual hydraulic hand pump (optional pneumatic-driven pump available)
• Screw mechanical extension
• Hydraulic relief valve for overload protection and protection against thermal fluid expansion
• Low-friction seals
• Manually operated safety nuts
• Spring-loaded heavy-duty swivel caster wheels
• Surface treatment: Skydroll-resistant paint (grey standard); unpainted parts galvanized or nitrided
• Packing: over pallet
• Jack socket dimensions: according to SAE standard AS8091
• Certifications / tests: CE marking according to EN12312; factory proof loaded at 150% of nominal capacity; lateral tested at 15% of vertical load
• Applicability example: MAIN - G600, G500
