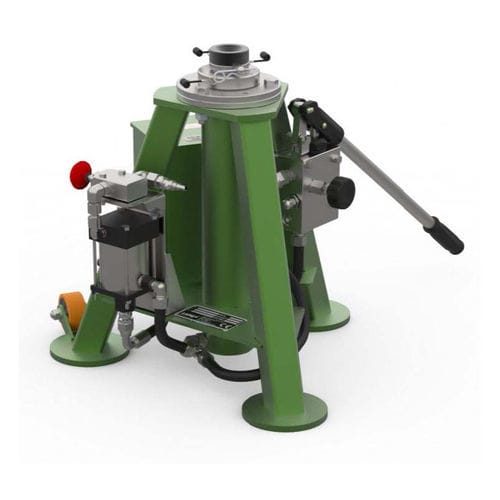

Helicopter jack 4505.06

for aircrafthydraulictripod

Description
The 4505.06 is a 5 t single-stage hydraulic tripod jack designed for aircraft jacking operations. The Langa S line features a compact, modular design with an independent cylinder and frame for simplified maintenance and rapid spare-parts replacement. The jack is intended for use on business and light aircraft and helicopters and is factory-tested to ensure safety and repeatability in workshop and ramp environments.

Applicability
NOSE | MAIN | TAIL
Citation I 500, Citation I/SP 501, Citation V, Citation CJ1, Citation CJ2, Citation CJ3, Citation CJ4, Encore 560, Citation M2, Citation SII, Citation VII, Citation II 550

Standard Features

• Manual hydraulic hand pump.
• Hydraulic relief valve for overload protection and compensation for internal fluid expansion.
• Mechanical extension with bolt interlocks at multiple heights.
• Easy disassembly between hydraulic cylinder and frame (independent subset) for reduced downtime.
• Low-friction seals to improve service life and performance.
• Manually operated safety nut for positive secondary restraint.
• Heavy-duty caster wheels for manoeuvrability on ramps and hangars.
• Skydroll resistant paint (Grey standard); all unpainted parts galvanized or nitrided for corrosion resistance.
• Packed over pallet for transport protection.
• Jack sockets dimensions according to SAE standard AS8091.
• CE marking per EN12312. Factory proof-loaded at 150% of nominal capacity; lateral tested at 15% of vertical load.

Optionals

• Special paint colour.
• Wooden closed box packaging.
• Pneumatic-driven hydraulic pump.
• Textile rain hat (cover).

Related Equipment

• Laser Alignment System (P/N: 1851.07).
• Weighing System integrated on jacks (P/N: 1898.00).
• I-jack — semi-automatic aircraft jacking system (P/N: 0677.00).

Technical specifications

• Model / Reference: 4505.06.
• Commercial denomination / Series: Langa S line tripod jacks.
• Rated capacity: 5 t.
• Configuration: Single-stage hydraulic tripod jack.
• Design: Compact, modular; cylinder and frame independent for easy maintenance and spare parts replacement.
• Testing: Every jack tested on jack tester prior to delivery; lateral tested at 15% of vertical load; factory proof-loaded at 150% of nominal capacity.
• Pump: Manual hydraulic hand pump (optional pneumatic-driven pump available).
• Safety: Hydraulic relief valve for overload protection; manually operated safety nut; low-friction seals; mechanical extension with bolt interlocks at multiple heights.
• Wheels: Heavy-duty caster wheels for hangar/ramp use.
• Finish: Skydroll resistant paint (Grey standard); unpainted parts galvanized or nitrided.
• Jack sockets: Dimensions according to SAE standard AS8091.
• Compliance: CE marking according to EN12312.
• Packaging: Over pallet (wooden closed box optional).
