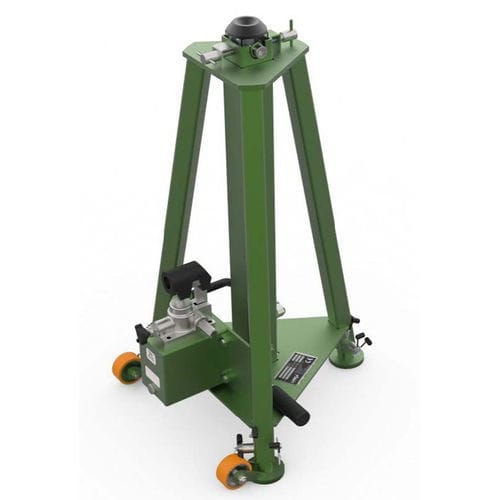

Helicopter jack 4502.02

for aircrafthydraulictripod

Product description
The model 4502.02 is a 2 t, single-stage hydraulic tripod jack designed for aircraft jacking operations. Langa S line tripod jacks feature a compact, modular design with independent cylinder and frame for simplified maintenance. The independent assembly reduces downtime and spare parts lead time and supports long service life in business & light aircraft and helicopters. Each jack is tested on a jack tester prior to delivery; all models are lateral tested at 15% of the vertical load.

Applicability
NOSE | MAIN | TAIL | Aerostar, Navajo, Chieftan

Standard Features
Manual hydraulic hand pump.

• Hydraulic relief valve for overload and added protection against internal fluid expansion due to temperature.
• Easy disassembly between hydraulic cylinder and frame (independent subset) for maintenance.
• Low-friction seals.
• Manually operated safety bolts.
• Extensible mechanical legs.
• Heavy-duty caster wheels for manoeuvrability.
• Skydroll-resistant paint (grey standard); unpainted parts galvanized or nitrided for corrosion protection.
• Packaging over pallet.
• Jack socket dimensions according to SAE standard AS8091.
• CE marking according to EN12312; factory proof loaded at 150% of nominal capacity.

Optionals
Special paint color.

• Wooden closed box.
• Pneumatic driven hydraulic pump.
• Textile rain hat.

Related Equipment
Laser Alignment System (P/N: 1851.07).

• Weighing System integrated on jacks (P/N: 1898.00).
• I-jack: semi-automatic system for jacking aircraft (P/N: 0677.00).

Technical specifications

• Model: 4502.02
• Commercial denomination: Tripod Jack
• Rated capacity: 2 t (2 tonnes)
• Configuration: Single-stage hydraulic tripod jack
• Design: Compact, modular design with cylinder and frame independent for easy maintenance
• Testing: Lateral tested at 15% of vertical load; factory proof loaded at 150% of nominal capacity
• Standard pump: Manual hydraulic hand pump (optional pneumatic driven pump available)
• Safety: Hydraulic relief valve for overload; manually operated safety bolts
• Seals: Low-friction seals
• Mobility: Heavy-duty caster wheels
• Stability: Extensible mechanical legs
• Corrosion protection: Skydroll-resistant paint (grey standard); unpainted parts galvanized or nitrided
• Packing: Packaging over pallet
• Sockets: Jack socket dimensions according to SAE standard AS8091
