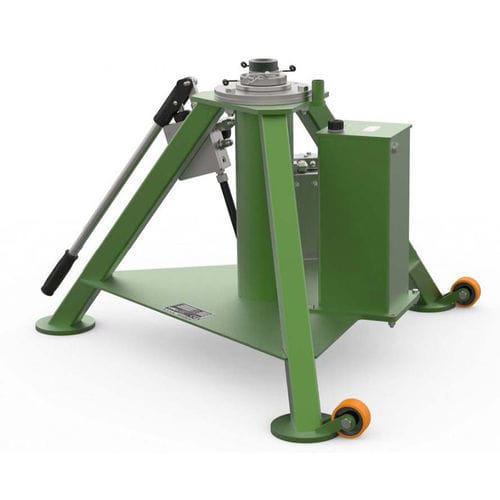

Helicopter jack 4505.56

for aircrafthydraulicpneumatic

Product description The model 4505.56 is a 5 t two-stage hydraulic tripod jack from the S line designed for business and light aircraft operations. Its compact, modular construction separates the hydraulic cylinder from the frame to simplify maintenance, reduce downtime and lower spare-parts costs. The jack is suited for repeated use on aircraft and helicopters and is delivered after factory testing to ensure compliance with aerospace handling requirements.

Applicability
NOSE | MAIN | TAIL
Pilatus PC-24, Phenom 300 | Pilatus PC-24, Phenom 300 |

Standard Features

• Manual hydraulic hand pump.
• Hydraulic relief valve for overload and thermal expansion protection.
• Mechanical extension with bolt interlocks at multiple heights.
• Quick separation between hydraulic cylinder and frame (independent modules) for easy maintenance.
• Low-friction seals.
• Manually operated safety nuts.
• Heavy-duty caster wheels for workshop mobility.
• Skydroll resistant paint (grey standard); unpainted parts galvanized or nitrided for corrosion resistance.
• Supplied over pallet.
• Jack socket dimensions according to SAE AS8091.
• CE marking according to EN12312; factory proof loaded at 150% of nominal capacity.
• All models lateral tested at 15% of the vertical load.

Optionals

• Special paint colour.
• Wooden closed box packing.
• Pneumatic-driven hydraulic pump.
• Textile rain cover.

Related Equipment

• Laser Alignment System (P/N: 1851.07).
• Weighing System integrated on jacks (P/N: 1898.00).
• I-jack semi-automatic aircraft jacking system (P/N: 0677.00).

Technical characteristics / specifications

• Model: 4505.56
• Series: S line
• Capacity: 5 t (nominal)
• Type: Two-stage hydraulic tripod jack
• Pumping: Manual hydraulic hand pump (optional pneumatic pump available)
• Safety: Hydraulic relief valve for overload; manually operated safety nuts
• Construction: Modular design with independent cylinder and frame for easy maintenance
• Seals: Low-friction seals
• Mobility: Heavy-duty caster wheels
• Extensions: Mechanical extension with bolt interlocks at multiple heights
• Finish: Skydroll resistant paint (grey standard); unpainted parts galvanized or nitrided
• Packing: Supplied over pallet
• Standards: Jack socket dimensions according to SAE AS8091; CE marking EN12312; factory proof loaded at 150% of nominal capacity
• Test: All models lateral tested at 15% of the vertical load
• Typical applicability: Pilatus PC-24, Phenom 300
