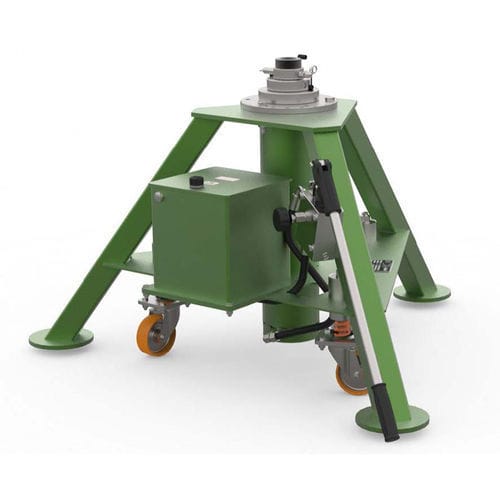

Helicopter jack 4509.52

for aircrafthydraulicpneumatic

Product overview
The 4509.52 is a 9 t, two-stage hydraulic tripod jack from the Langa S line. Its modular design separates the hydraulic cylinder and frame to simplify maintenance and reduce downtime. The jack is intended for use on business & light aircraft and helicopters and is fully tested (lateral and proof load) prior to delivery.

Applicability
NOSE | MAIN | TAIL
| Caravan 406, Citation ULTRA 560, Citation Latitude 680A, Citation Longitude 700, Citation 560 XL/XLS, Citation Sovereign 680 |

Standard Features

• Manual hydraulic hand pump
• Hydraulic relief valve for overload protection and thermal expansion
• Mechanical extension with bolt interlocks at multiple heights
• Quick disassembly between hydraulic cylinder and frame (independent subsets)
• Low-friction seals
• Manually operated safety nuts
• Spring-loaded heavy-duty swivel caster wheels for mobility
• Skydroll resistant paint (grey standard); unpainted parts galvanized or nitrided
• Packaging on pallet
• Jack socket dimensions according to SAE AS8091
• CE marking per EN12312; factory proof-loaded at 150% of nominal capacity

Optionals

• Special paint color
• Wooden closed box for export packing
• Pneumatic-driven hydraulic pump
• Textile rain cover

Related equipment

• Laser Alignment System (P/N: 1851.07)
• Weighing System integrated on jacks (P/N: 1898.00)
• I-jack semi-automatic aircraft jacking system (P/N: 0677.00)

Technical specifications

• Model reference: 4509.52
• Series: Langa S line tripod jacks
• Capacity: 9 t (nominal)
• Type: Two-stage hydraulic tripod jack
• Design: Modular — independent cylinder and frame for simplified maintenance
• Operation: Manual hydraulic hand pump (pneumatic pump optional)
• Safety: Hydraulic relief valve for overload; manually operated safety nuts
• Testing: Lateral tested at 15% of vertical load; factory proof-loaded at 150% of nominal capacity; quality checked on jack tester prior to delivery
• Standards: Jack sockets per SAE AS8091; CE marking per EN12312
• Finish: Skydroll resistant paint (grey standard); unpainted parts galvanized or nitrided
• Mobility: Spring-loaded heavy-duty swivel caster wheels
• Packing: Supplied on pallet (wooden closed box optional)
