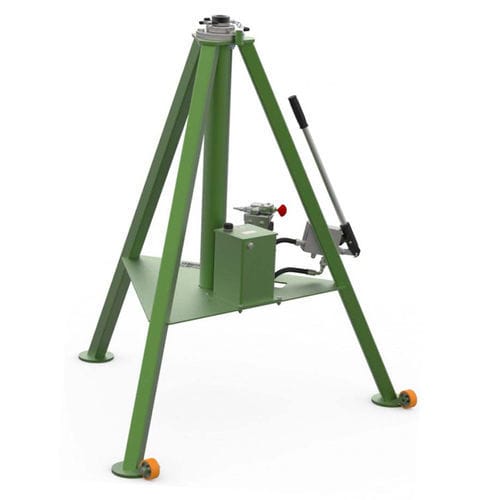

Helicopter jack 4505.05

for aircrafthydraulictripod

Product description
The model 4505.05 is a 5 t single-stage hydraulic tripod jack designed for aircraft maintenance. Langa S line tripod jacks feature a compact, modular design with an independent hydraulic cylinder and frame to simplify maintenance and spare-part replacement. The construction and factory testing protocol ensure reliable long-term service for business & light aircraft and helicopters. Each unit is lateral tested at 15% of the vertical load and factory proof loaded at 150% of nominal capacity.

Applicability
NOSE | MAIN | TAIL | P-180

Standard Features

• Manual hydraulic hand pump.
• Hydraulic relief valve for overload protection and compensation for internal fluid expansion due to temperature.
• Mechanical extension with bolt interlocks at multiple heights.
• Easy separation of hydraulic cylinder and frame for simplified maintenance (independent subset).
• Low-friction seals for smooth operation.
• Manually operated safety nut.
• Heavy-duty caster wheels for mobility.
• Skydroll resistant paint (Grey standard); all unpainted parts are galvanized or nitrided for corrosion resistance.
• Supplied packaged over a pallet.
• Jack socket dimensions according to SAE standard AS8091.
• CE marking according to EN12312. Factory proof loaded at 150% of nominal capacity.

Optionals
Special paint color.

• Wooden closed box.
• Pneumatic-driven hydraulic pump.
• Textile rain hat.

Related Equipment
Laser Alignment System (P/N: 1851.07).

• Weighing system integrated on jacks (P/N: 1898.00).
• I-jack: semi-automatic system for jacking aircraft (P/N: 0677.00).

Caractéristiques / spécifications techniques

• Nominal capacity: 5 t.
• Model: 4505.05.
• Type: Single-stage hydraulic tripod jack.
• Design: Compact, modular design with independent hydraulic cylinder and frame for easy maintenance.
• Operation: Manual hydraulic hand pump.
• Lateral test: All models lateral tested at 15% of the vertical load.
• Factory proof load: 150% of nominal capacity (CE marking according to EN12312).
• Jack sockets: Dimensions according to SAE standard AS8091.
• Seals: Low-friction seals.
• Safety: Manually operated safety nut; hydraulic relief valve for overload and protection against internal fluid expansion.
• Mobility: Heavy-duty caster wheels.
• Finish: Skydroll resistant paint (Grey standard); unpainted parts galvanized or nitrided for corrosion resistance.
• Packaging: Supplied over pallet.
