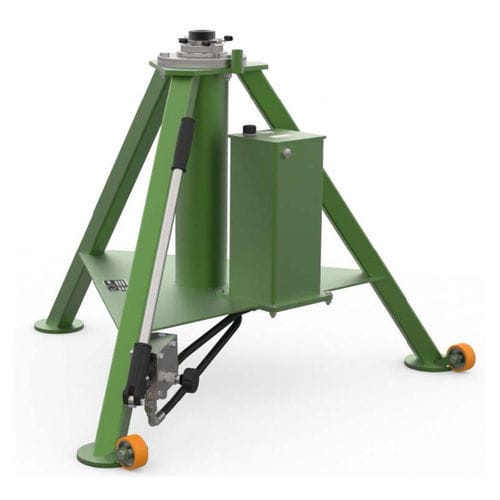

Helicopter jack 4505.54

for aircrafthydraulicpneumatic

Description
The model 4505.54 is a 5 t, two-stage hydraulic tripod jack designed for aircraft jacking (nose, main, tail). Langa S line tripod jacks feature a compact, simple layout with an independent hydraulic cylinder and frame for easy maintenance and fast spare-part replacement. This modular solution reduces maintenance cost and ensures long service life in business and light aircraft operations as well as helicopters. Each jack is bench-tested before delivery; all models receive a lateral test at 15% of vertical load and a factory proof load at 150% of nominal capacity.

Applicability
Nose | Main | Tail
Examples: Citation ULTRA 560, Citation Latitude 680A, Citation Longitude 700, Citation Sovereign 680

Standard Features

• Manual hydraulic hand pump.
• Hydraulic relief valve for overload and thermal fluid expansion protection.
• Mechanical extension with bolt interlocks at multiple heights.
• Easy disassembly between hydraulic cylinder and frame (independent subset).
• Low-friction seals.
• Manually operated safety nuts.
• Heavy-duty caster wheels.
• Skydroll resistant paint (grey standard); unpainted parts galvanized or nitrided for corrosion resistance.
• Packaging over pallet.
• Jack socket dimensions according to SAE AS8091.
• CE marking per EN12312; factory proof loaded at 150% of nominal capacity.

Optionals

• Special paint colour.
• Wooden closed box.
• Pneumatic-driven hydraulic pump.
• Textile rain cover.

Related Equipment

• Laser Alignment System (P/N: 1851.07).
• Weighing System integrated on jacks (P/N: 1898.00).
• I-jack semi-automatic jacking system for aircraft (P/N: 0677.00).

Technical specifications

• Model code: 4505.54
• Denomination: Tripod jack, 5 t nominal capacity
• Type: Two-stage hydraulic tripod jack
• Testing: Lateral tested at 15% of vertical load; factory proof loaded at 150% of nominal capacity
• Standards: Jack socket dimensions according to SAE AS8091; CE marking according to EN12312
• Operation: Manual hydraulic hand pump (standard); optional pneumatic-driven hydraulic pump
• Design: Independent hydraulic cylinder and frame for easy maintenance and spare parts supply
• Safety: Hydraulic relief valve for overload; manually operated safety nuts; mechanical extension with bolt interlocks
• Seals & finish: Low-friction seals; Skydroll resistant paint (grey standard); unpainted parts galvanized or nitrided
• Mobility & packaging: Heavy-duty caster wheels; packaging over pallet
• Applicability examples: Citation ULTRA 560, Citation Latitude 680A, Citation Longitude 700, Citation Sovereign 680
