Helicopter jack 4530.01

for aircrafthydraulicpneumatic

Description

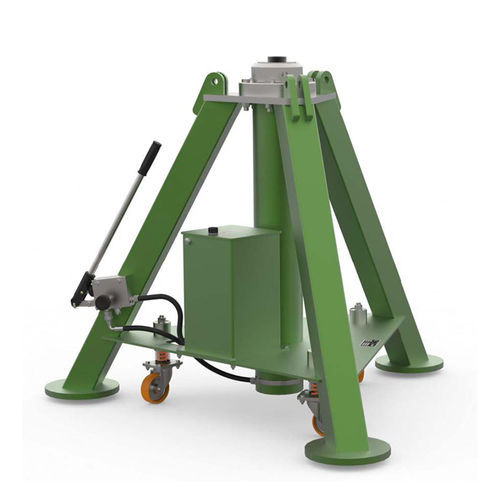

The model 4530.01 is a 30 t, single-stage hydraulic tripod jack designed for jacking business & light aircraft and helicopters. The S line tripods feature a compact, modular design with an independent hydraulic cylinder and frame to simplify maintenance and spare-part replacement. Each unit is factory-tested: lateral testing at 15% of vertical load and proof load at 150% of nominal capacity.

Applicability
NOSE
B707

MAIN
G350, G450, G600, G500, GLOBAL 5500, GLOBAL 6500, Gulfstream II, Gulfstream III, Gulfstream IV, Gulfstream IV SP, Gulfstream V, Gulfstream V SP, Challenger 870, Global Express, GLOBAL 5000, GLOBAL 6000, GLOBAL EXPRESS XRS

TAIL
DC9

Standard Features

• Manual hydraulic hand pump
• Hydraulic relief valve for overload and protection against internal fluid expansion due to temperature
• Screw mechanical extension
• Easy disassembly between hydraulic cylinder and frame (independent subset) for fast maintenance
• Low-friction seals
• Manually operated safety nuts
• Spring-loaded heavy-duty swivel caster wheels
• Skydroll resistant paint (Grey standard); unpainted parts galvanized or nitrided for corrosion resistance
• Packaging over pallet
• Jack socket dimensions according to SAE standard AS8091
• CE marking according to EN12312; factory proof loaded at 150% of nominal capacity

Optionals

• Special paint color
• Wooden closed box
• Pneumatic-driven hydraulic pump
• Textile rain hat

Related Equipment

• Laser Alignment System (P/N: 1851.07)
• Weighing System integrated on jacks (P/N: 1898.00)
• I-jack, semi-automatic system for jacking aircraft (P/N: 0677.00)

Technical specifications

• Model code: 4530.01
• Denomination / series: S line
• Rated capacity: 30 t (tonnes)
• Type: Single-stage hydraulic tripod jack
• Pump: Manual hydraulic hand pump (optional pneumatic pump available)
• Safety: Hydraulic relief valve for overload; manually operated safety nuts
• Construction: Modular design with independent cylinder and frame for easy maintenance
• Seals: Low-friction seals
• Mobility: Spring-loaded heavy-duty swivel caster wheels
• Finish: Skydroll resistant paint (Grey standard); unpainted parts galvanized or nitrided
• Packing: Supplied packaged over pallet (option: wooden closed box)
• Jack sockets: Dimensions according to SAE standard AS8091
• Marking & testing: CE marking (EN12312); factory proof load at 150% of nominal capacity; lateral tested at 15% of vertical load
• Intended use: For business & light aircraft and helicopters
