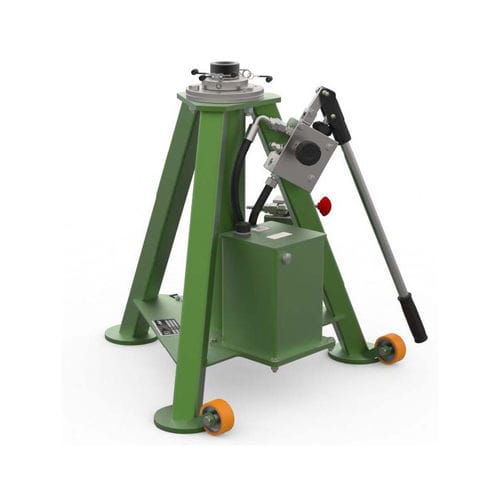

Aircraft jack 4505.01

hydraulicpneumatictripod

Product description
The model 4505.01 is a 5 t single-stage hydraulic tripod jack for aircraft jacking operations. Langa S line tripod jacks feature a compact, modular design with independent cylinder and frame to simplify maintenance, speed spare-part replacement and reduce downtime. Each unit is inspected and tested on a jack tester before delivery; all models undergo lateral testing at 15% of the vertical load.

Applicability
NOSE: Citation 650, Citation VI, Citation III, Citation IV, Citation 560 XL/XLS, Pilatus PC-9
MAIN: Citation I 500, Citation I/SP 501, Citation V, Citation CJ1, Citation CJ2, Citation CJ3, Citation CJ4, Citation ENCORE 560, Citation M2, Citation SII, Eclipse 500, Citation VII, Citation II 550, Pilatus PC-12, Pilatus PC-9
TAIL: Eclipse 500

Standard Features

• Manual hydraulic hand pump.
• Hydraulic relief valve for overload protection and to compensate internal fluid expansion due to temperature.
• Mechanical extension with bolt interlocks at multiple heights.
• Easy disassembly between hydraulic cylinder and frame (independent subset) for fast maintenance.
• Low-friction seals to ensure smooth operation.
• Manually operated safety nut.
• Heavy-duty caster wheels for mobility.
• Skydroll resistant paint (grey standard); all unpainted parts are galvanized or nitrided for corrosion resistance.
• Supplied packaged over pallet.
• Jack socket dimensions according to SAE standard AS8091.
• CE marking according to EN12312; factory proof loaded at 150% of nominal capacity.

Optionals

• Special paint color.
• Wooden closed box packaging.
• Pneumatic-driven hydraulic pump (optional actuation).
• Textile rain cover.

Related Equipment

• Laser Alignment System (P/N: 1851.07).
• Weighing System integrated on jacks (P/N: 1898.00).
• I-jack semi-automatic jacking system for aircraft (P/N: 0677.00).

Technical specifications

• Model: 4505.01
• Denomination: Tripod jack (single-stage hydraulic)
• Rated capacity: 5 t
• Configuration: Single-stage hydraulic tripod jack; compact modular design with independent cylinder and frame for easy maintenance
• Standard actuation: Manual hydraulic hand pump (pneumatic pump optional)
• Safety/protection: Hydraulic relief valve for overload, manually operated safety nut, low-friction seals
• Testing & certification: Lateral tested at 15% of vertical load; factory proof loaded at 150% of nominal capacity; CE marking according to EN12312
• Standards: Jack socket dimensions according to SAE AS8091
• Finish & corrosion resistance: Skydroll resistant paint (grey standard); unpainted parts galvanized or nitrided
• Mobility & handling: Heavy-duty caster wheels; mechanical extension with bolt interlocks at different heights
• Packaging: Supplied over pallet
