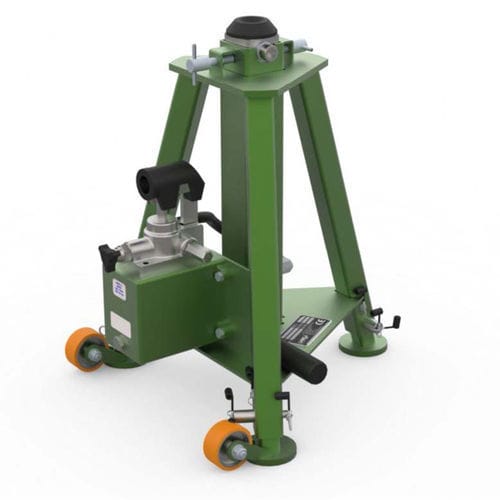

Helicopter jack 4502.01

for aircrafthydraulictripod

Product overview
The model 4502.01 is a 2 t, single-stage hydraulic tripod jack engineered for maintenance of business & light aircraft and helicopters. Its compact, modular S-line design separates the hydraulic cylinder from the frame to simplify servicing and spare parts replacement. Each unit is factory proof tested and laterally tested to meet operational safety requirements.

APPLICABILITY
NOSE
Challenger 650, Caravan 208, Caravan 208B, TBM 700, Citation X750
MAIN
DA20-A1, DA20-C1, Baron, Comanche, Aztec, Seneca, DA40 Diamond Star, Bonanza, TBM 700, Cherokee, Citation X750
TAIL

STANDARD FEATURES

• Manual hydraulic hand pump (standard).
• Hydraulic relief valve for overload and protection against internal fluid expansion due to temperature.
• Modular construction allowing easy disassembly between hydraulic cylinder and frame.
• Low-friction seals and manually operated safety bolts.
• Extensible mechanical legs for adjustable support.
• Heavy-duty caster wheels for mobility.
• Skydrol-resistant paint (grey standard); unpainted parts galvanized or nitrided for corrosion resistance.
• Palletized packaging; jack sockets per SAE AS8091; CE marking per EN12312. Factory proof load at 150% of nominal capacity; lateral test at 15% of vertical load.

OPTIONALS

• Alternative hand pump and accessory fittings on request.
• Custom corrosion treatments or paint options; wheel and socket variants to match aircraft interface.

Related equipment
Support adapters, load spreader plates and transport trolleys compatible with model 4502.01.

Technical specifications

• Model: 4502.01
• Denomination: Tripod jack
• Rated capacity: 2 t (2 tonnes)
• Configuration: Single-stage hydraulic tripod jack
• Pumping: Manual hydraulic hand pump (standard)
• Design: Compact, modular design with independent cylinder and frame
• Safety: Hydraulic relief valve for overload; manually operated safety bolts
• Testing: Factory proof test; lateral test at 15% of vertical load; factory proof load 150% nominal
• Standards: Jack socket dimensions per SAE AS8091; CE marking per EN12312
• Finish: Skydrol-resistant paint (grey); unpainted parts galvanized or nitrided
• Mobility: Heavy-duty caster wheels; extensible mechanical legs
• Packing: Supplied palletized
