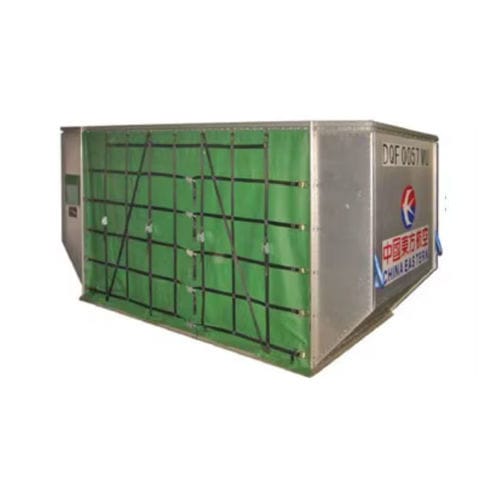

LD-2 container - ALF - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - LD-3 / LD-6 / LD-8

LD-2 container - ALF - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - LD-3 / LD-6 / LD-8 - image - 2

LD-2 container - ALF - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - LD-3 / LD-6 / LD-8 - image - 3

LD-2 container - ALF - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - LD-3 / LD-6 / LD-8 - image - 4

LD-2 container - ALF - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - LD-3 / LD-6 / LD-8 - image - 5

LD-2 container - ALF - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - LD-3 / LD-6 / LD-8 - image - 6

Add to favorites

Compare this product

Go to the Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. website for more information

Characteristics

Common designation: LD-3, LD-2, LD-6, LD-8
Other characteristics: aluminum
Domain: for air cargo
Length: 1,562 mm, 2,007 mm, 3,175 mm, 4,064 mm
(61 in, 79 in, 125 in, 160 in)
Width: 1,534 mm
(60 in)
Height: 1,626 mm
(64 in)
Maximum load: 1,225 kg, 1,588 kg, 2,450 kg, 3,175 kg
(2,700.7 lb, 3,500.9 lb, 5,401.3 lb, 6,999.7 lb)

Description

Introduction
An air cargo container (ULD) is a purpose-built unit for secure, standardized transport of goods in aircraft cargo holds. The ALF series offers lightweight aluminum construction and multiple LD-type variants suitable for different payloads and aircraft configurations.

Key features

Durable construction: aluminum structure designed for aviation cargo handling.
Standardized design: compatible with common aircraft ULD specifications to ensure safe stowage and aircraft integration.
Optimized internal volume: configuration maximizes usable cargo space and facilitates organized loading.
Variant range: available in LD2, LD3, LD6 and LD8 formats to match different capacity and aircraft interface requirements.

Product Description
SPECIFICATION OF AVIATION CONTAINER
DPE/LD2 — Max Capacity: 1225 kg; Dead Weight: 87 kg; Chassis Size (mm): 1194 (L) × 1534 (W); Working Table Size (mm): 1562 (L) × 1534 (W) × 1626 (H)
AKE/LD3/2K2C — Max Capacity: 1588 kg; Dead Weight: 100/90 kg; Chassis Size (mm): 1562 (L) × 1534 (W); Working Table Size (mm): 2007 (L) × 1534 (W) × 1626 (H)
ALF/LD6/2L1C — Max Capacity: 3175 kg; Dead Weight: 160 kg; Chassis Size (mm): 3175 (L) × 1534 (W); Working Table Size (mm): 4064 (L) × 1534 (W) × 1626 (H)
DQF/LD8 — Max Capacity: 2450 kg; Dead Weight: 127 kg; Chassis Size (mm): 2438 (L) × 1534 (W); Working Table Size (mm): 3175 (L) × 1534 (W) × 1626 (H)

Images
Multiple product images are available to show external views, internal layout and the different ALF variants to support technical evaluation and procurement decisions.

Technical specifications

Model: ALF
Type variants: DPE/LD2; AKE/LD3/2K2C; ALF/LD6/2L1C; DQF/LD8
Max Capacity (examples): DPE/LD2 = 1225 kg; AKE/LD3/2K2C = 1588 kg; ALF/LD6/2L1C = 3175 kg; DQF/LD8 = 2450 kg
Dead Weight (examples): DPE/LD2 = 87 kg; AKE = 100/90 kg; ALF = 160 kg; DQF = 127 kg
Chassis Size (mm) (examples): DPE = 1194 × 1534; AKE = 1562 × 1534; ALF = 3175 × 1534; DQF = 2438 × 1534
Working Table Size (mm) (examples): DPE = 1562 × 1534 × 1626; AKE = 2007 × 1534 × 1626; ALF = 4064 × 1534 × 1626; DQF = 3175 × 1534 × 1626
Material / Construction: aluminum frame and panels suitable for aviation use
Standardization: compliant with aviation container dimensional/specification standards for aircraft compatibility
